NINGBO JIANGYING ELECTRICAL INDUSTRY CO.,LTD
PRODUCTS LISTProudcts >> Refrigerator Motor Series >> 801 series

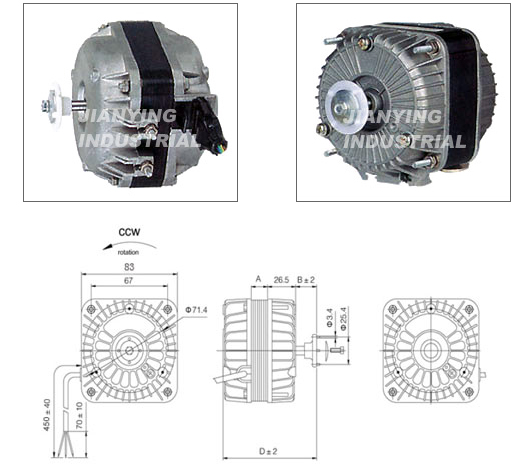

Main technical parameter:



TYPE VOLTAGE
(V)		 FREQUENCY
(Hz)		 RATED INPUT
(W)		 OUTPUT
(W)		 RATED
CURRENT		 RATED SPEED
(r/min)		 FAN BLADE
(mm)		 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 E
(mm)
JYF5-13-00 220 50 29 5 0.20 1300 Ø200 13 12 - 78 -
JYF7-20-00 220 50 31 7 0.23 1300 Ø230 19 13 - 85 -
JYF10-20-00 220 50 36 10 0.25 1300 Ø230 19 13 - 85 -
JYF16-25-00 220 50 60 16 0.45 1300 Ø254 25 14 - 92 -
JYF25-40-00 220 50 90 25 0.70 1300 Ø300 40 18 - 112 -
JYF34-45-00 220 50 110 34 0.85 1300 Ø300 45 22 - 121 -
JYFC45-21-00 220 50 90 45 0.40 2800 Ø230 21 22 - 93 -
