PRODUCTS LISTProudcts >> Meat Mincer/Spare Parts >> Stainless steel mincer plate
| Model NO. |
Material |
Hardness |
Outer Diameter |
Thickness |
Hole Diameter |
| #12-4 |
SS420 |
52-55HRC |
65.6mm |
8mm |
7.6mm |
| #12-4.8 |
SS420 |
52-55HRC |
65.6mm |
8mm |
7.6mm |
| #120Sector |
SS420 |
52-55HRC |
65.6mm |
8mm |
7.6mm |
| Model NO. |
Material |
Hardness |
Outer Diameter |
Thickness |
Hole Diameter |
| #5-0 Flat Plate |
SS420 |
52-55HRC |
53.2±0.2mm |
5.5±0.3mm |
8.2±0.1mm |
| #5-2 Flat Plate |
SS420 |
52-55HRC |
53.2±0.2mm |
9.8mm |
8.2±0.1mm |
| #5-3 Flat Plate |
SS420 |
52-55HRC |
53.2±0.2mm |
10.5mm |
8.2±0.1mm |
| #5-3.5 Flat Plate |
SS420 |
52-55HRC |
53.2±0.2mm |
10.5mm |
8.2±0.1mm |
| #5-4.5 Flat Plate |
SS420 |
52-55HRC |
53.2±0.2mm |
10.5mm |
8.2±0.1mm |
| #5-6 Flat Plate |
SS420 |
52-55HRC |
53.2±0.2mm |
10.5mm |
8.2±0.1mm |
| #5-8 Flat Plate |
SS420 |
52-55HRC |
53.2±0.2mm |
10.5mm |
8.2±0.1mm |
| #5-10 Flat Plate |
SS420 |
52-55HRC |
53.2±0.2mm |
10.5mm |
8.2±0.1mm |
 |
| Model NO. |
Material |
Hardness |
Outer Diameter |
Thickness |
Hole Diameter |
| #8-2Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
5.5±0.3mm |
9.2±0.1mm |
| #8-3Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
5.5±0.3mm |
9.2±0.1mm |
| #8-3.5Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
5.5±0.3mm |
9.2±0.1mm |
| #8-4.5Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
5.5±0.3mm |
9.2±0.1mm |
| #8-6Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
5.5±0.3mm |
9.2±0.1mm |
| #8-8Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
5.5±0.3mm |
9.2±0.1mm |
| #8-10Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
5.5±0.3mm |
9.2±0.1mm |
| Model NO. |
Material |
Hardness |
Outer Diameter |
Thickness |
Hole Diameter |
| #8-2Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
7.5±0.2mm |
9.2±0.1mm |
| #8-3Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
7.5±0.2mm |
9.2±0.1mm |
| #8-3.5Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
7.5±0.2mm |
9.2±0.1mm |
| #8-4.5Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
7.5±0.2mm |
9.2±0.1mm |
| #8-6Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
7.5±0.2mm |
9.2±0.1mm |
| #8-8Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
7.5±0.2mm |
9.2±0.1mm |
| #8-10Flat Plate |
SS420 |
52-55HRC |
61.8±0.2mm |
7.5±0.2mm |
9.2±0.1mm |
| Model NO. |
Material |
Hardness |
Outer Diameter |
Thickness |
Hole Diameter |
| #12-2Flat Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| #12-3Flat Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| #12-3.5Flat Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| #12-4.5Flat Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| #12-6Flat Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| #12-8Flat Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| #12-10Flat Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| Model NO. |
Material |
Hardness |
Outer Diameter |
Thickness |
Hole Diameter |
| #22-2Flat Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| #22-3Flat Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| #22-3.5Flat Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| #22-4.5Flat Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| #22-6Flat Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| #22-8Flat Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| #22-10Flat Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
 |
| Model NO. |
Material |
Hardness |
Outer Diameter |
Thickness |
Hole Diameter |
| #32-2Flat Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
| #32-3Flat Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
| #32-3.5Flat Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
| #32-4.5Flat Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
| #32-6Flat Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
| #32-8Flat Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
| #32-10Flat Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
 |
| Model NO. |
Material |
Hardness |
Outer Diameter |
Thickness |
Hole Diameter |
| #42-2Flat Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
| #42-3Flat Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
| #42-3.5Flat Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
| #42-4.5Flat Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
| #42-6Flat Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
| #42-8Flat Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
| #42-10Flat Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
 |
 |
| Model NO. |
Material |
Hardness |
Outer Diameter |
Thickness |
Hole Diameter |

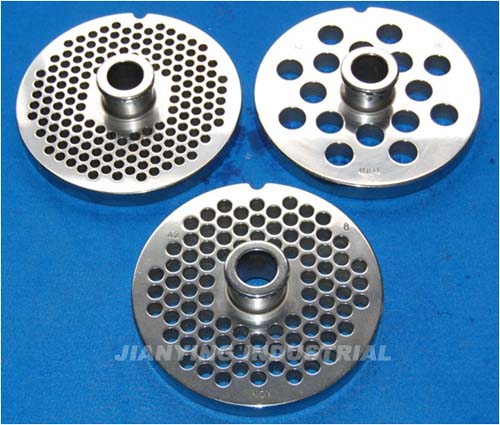

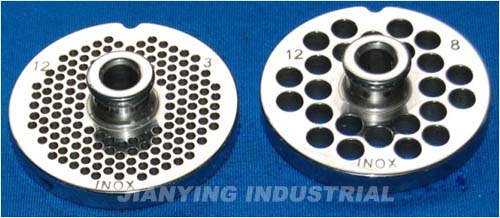

| #12-0 Hub Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| #12-2 Hub Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| #12-3 Hub Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| #12-3.5 Hub Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| #12-4.5 Hub Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| #12-6 Hub Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| #12-8 Hub Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| #12-10 Hub Plate |
SS420 |
52-55HRC |
69.4±0.1mm |
8±0.1mm |
10±0.2mm |
| Model NO. |
Material |
Hardness |
Outer Diameter |
Thickness |
Hole Diameter |
| #22-0 Hub Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| #22-2 Hub Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| #22-3 Hub Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| #22-3.5 Hub Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| #22-4.5 Hub Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| #22-6 Hub Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| #22-8 Hub Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| #22-10 Hub Plate |
SS420 |
52-55HRC |
82.4±0.1mm |
9.6±0.1mm |
11.2±0.1mm |
| Model NO. |
Material |
Hardness |
Outer Diameter |
Thickness |
Hole Diameter |

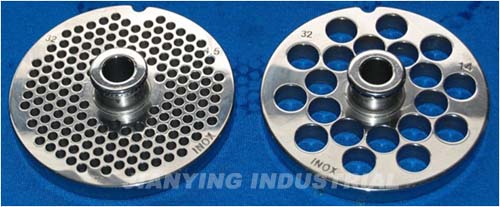

| #32-0 Hub Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
| #32-2 Hub Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
| #32-3 Hub Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
| #32-3.5 Hub Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
| #32-4.5 Hub Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
| #32-6 Hub Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
| #32-8 Hub Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
| #32-10 Hub Plate |
SS420 |
52-55HRC |
99.6±0.1mm |
9.6±0.2mm |
13.2±0.1mm |
 |
| Model NO. |
Material |
Hardness |
Outer Diameter |
Thickness |
Hole Diameter |
| #42-0 Hub Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
| #42-2 Hub Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
| #42-3 Hub Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
| #42-3.5 Hub Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
| #42-4.5 Hub Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
| #42-6 Hub Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
| #42-8 Hub Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
| #42-10 Hub Plate |
SS420 |
52-55HRC |
129.8±0.3mm |
12±0.1mm |
19.8±0.2mm |
