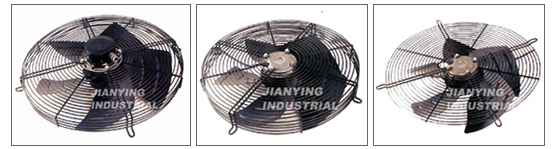

PRODUCTS LISTProudcts >> External Stator Fan Motors >> External stator fan motors




Model YWF450-6-P YWF400-6-P YWF350-6-P YWF450-6-P YWF300-6-P YWF45-4-P YWF400-4-P YWF300-4-P
YWF450-6-PH YWF400-6-PH YWF350-6-PH YWF450-6-PH YWF300-6-PH YWF45-4-PH YWF400-4-PH YWF300-4-PH
YWF450-6-L YWF400-6-L YWF350-6-L YWF450-6-L YWF300-6-L YWF45-4-L YWF400-4-L YWF300-4-L
YWF450-6-LH YWF400-6-LH YWF350-6-LH YWF450-6-LH YWF300-6-LH YWF45-4-LH YWF400-4-LH YWF300-4-LH
W 200 170 150 80 360 260 220 120
V 230 230 230 230 230 230 230 230
Hz 50 50 50 50 50 50 50 50
A 1 0.9 0.6 0.4 1.65 1.35 1.2 0.8
r/min ≥0820 ≥870 ≥920 ≥940 ≥1200 ≥1300 ≥1400 ≥1440
mmH2O 4300 3200 2300 1200 5900 4300 3200 1800
INS B B
DUIT YTPE 1 1
ROT CCW CCW
Electrode 6 4
uF) 4 2 4 2
